AM-C550 Series/AM-C400 Series

User's Guide

> Preparing the Printer and Making Initial Settings > Installing Optional Items > Installing the Optional Wireless LAN Interface-P1

Installing the Optional Wireless LAN Interface-P1

Note:

Wireless LAN Interface-P1 may not be available in your country or region.

Important:

The foldable sheet attached to the Wireless LAN Interface-P1 has the safety standard certification number on it and should not be removed.

  1. Turn off the printer.

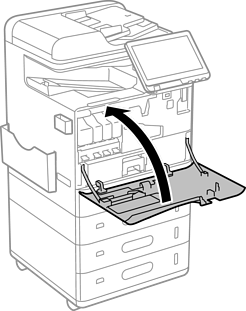

  2. Open the front cover.

  3. With the foldable sheet of the Wireless LAN Interface-P1 facing you, insert it firmly into the upper Wi-Fi unit port.

    Note:

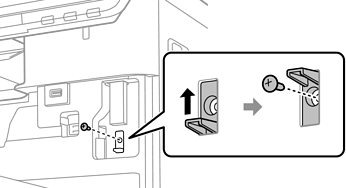

    When locking the Wireless LAN Interface-P1, use a Phillips screwdriver to remove the lock lever screw, slide it upward, and then fix it with the screw.

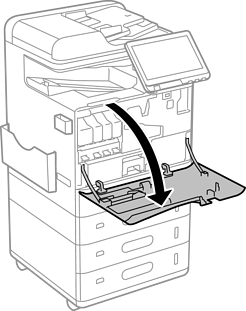

  4. Close the front cover.

  5. Turn on the printer and check that is displayed on the control panel.

    If is not displayed, turn the printer off and then on again.
