The items may not be available depending on other settings you made.
The location where the items are displayed may change depending on whether the options are installed.
Basic Menu Options for Copying
Density
Increase the level of density when the copying results are faint. Decrease the level of density when ink smears.
Paper Setting
Select the paper source that you want to use. When Auto is selected, a suitable size is fed automatically depending on the auto detected original size and the specified magnification ratio.
Reduce/Enlarge
Configures the magnification ratio of the enlargement or reduction. Tap the value and specify the magnification used to enlarge or reduce the original within a range of 25 to 400%.
Auto

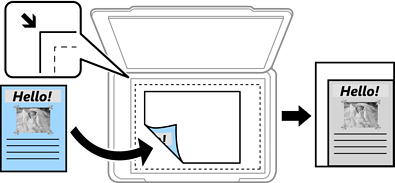

Detects the scan area and automatically enlarges or reduces the original to fit to the paper size you selected. When there are white margins around the original, the white margins from the corner mark () of the scanner glass are detected as the scan area, but the margins at the opposite side may be cropped.
Reduce to Fit Paper
Copies the scanned image at a smaller size than the Reduce/Enlarge value to fit within the paper size. If the Reduce/Enlarge value is larger than the paper size, data may be printed beyond the edges of the paper.
Free Form(mm)
Specify the vertical and horizontal lengths of the paper to enlarge or reduce it.
Free Form(%)
Specify different magnifications for the vertical and horizontal lengths of the original to enlarge or reduce it.
Actual Size
Copies at 100 % magnification.
A3→A4 and others
Automatically enlarges or reduces the original to fit to a specific paper size.
Original Type
Select the type of your original. Copies in optimal quality to match the type of original.
2-Sided
Select 2-sided layout.
1→1-Sided
Copies one side of an original onto a single side of paper.
2→2-Sided
Copies both sides of a double-sided original onto both sides of a single sheet of paper. Select the orientation of your original and the binding position of the original and the paper.
1→2-Sided
Copies two single-sided originals onto both sides of a single sheet of paper. Select the orientation of your original and the binding position of the paper.
2→1-Sided
Copies both sides of a double-sided original onto one side of two sheets of paper. Select the orientation of your original and the binding position of the original.
Multi-Page
Select the copy layout.
Single Page
Copies a single-sided original onto a single sheet.
2-up
Copies two single-sided originals onto a single sheet in 2-up layout. Select the layout order and the orientation of your original.
4-up
Copies four single-sided originals onto a single sheet in 4-up layout. Select the layout order and the orientation of your original.
Finishing
Finishing
Select Collate (Page Order) to print multi-page documents collated in order and sorted into sets.
Select Group (Same Pages) to print multi-page documents by acquiring the same numbered pages as the group.
Eject Paper
If you select Rotate Sort, you can print alternately in the portrait direction and the landscape direction. Choose Auto as the Paper Setting when using this feature.
If you select Shift Sort, you can offset each set of copies. Displayed when the finisher is installed.
Staple
Select the staple location. Displayed when the finisher is installed.
Punch
Select the location for the punch holes. Displayed when the punch unit is installed.
Saddle Stitch
Make the following settings when you want to make the copies saddle stitched.
This menu is displayed only when the saddle stich function is enabled.
Saddle Stitch
Allows you to make the copies saddle stitched.
Sheets per Staple
Specify the number of page for saddle stiches.
Split
Allows you to print separately.
Cover
Allows you to add the covers to the copies.
Paper Setting
Select the paper source in which you loaded the paper for the covers.
Half Fold
Specify these settings when you want to make the copies half folded.
This menu is displayed only when the half fold function is enabled.
Half Fold
Allows you to make the copies half folded.
Sheets per Fold
Specify the number of page for half fold.
Split
Allows you to split copies when they are ejected.
Cover
Allows you to add covers to the copies.
Paper Setting
Select the paper source in which you loaded the paper for the covers.
Print Mode
Select whether to print outside or inside the half folded paper.
Tri Fold
Specify these settings when you want to make trifolded copies.
This menu is displayed only when the trifold function is enabled.
Tri Fold
Allows you to make trifolded copies.
Sheets per Fold
Specify the number of trifolded pages.
Print Mode
Select whether to print outside or inside the trifolded paper.
Open Orientation
Select the open orientation.
Booklet
Booklet
Specify these settings when you want to create a booklet from your copies.
Booklet
Allows you to create a booklet from your copies.
Binding
Select the binding position of the booklet.
Binding Margin
Specify the binding margin. You can set 0 to 50 mm as the binding margin in 1mm increments.
Cover
Allows you to add covers to the booklet.
Original Size
Select the size of your original.
Paper Setting
Select the paper source you want to use to print.
2-Sided
Select 2-sided layout.
Saddle Stitch
Select the following settings when you want to make the copies saddle stitched.
This menu is displayed only when the saddle stich function is enabled.
Saddle Stitch
Allows you to make the copies saddle stitched.
Sheets per Staple
Specify the number of page for saddle stiches.
Split
Allows you to print separately.
Cover
Allows you to add the covers to the copies.
Paper Setting
Select the paper source in which you loaded the paper for the covers.
Half Fold
Specify these settings when you want to make the copies half folded.
This menu is displayed only when the half fold function is enabled.
Half Fold
Allows you to make the copies half folded.
Sheets per Fold
Specify the number of page for half fold.
Split
Allows you to print separately.
Cover
Allows you to add covers to the copies.
Paper Setting
Select the paper source in which you loaded the paper for the covers.
Print Mode
Select whether to print outside or inside the half folded paper.
Fold
Half Fold
Specify these settings when you want to make the copies half folded.
This menu is displayed only when the half fold function is enabled.
Half Fold
Allows you to make the copies half folded.
Sheets per Fold
Specify the number of page for half fold.
Split
Allows you to split copies when they are ejected.
Cover
Allows you to add covers to the copies.
Paper Setting
Select the paper source in which you loaded the paper for the covers.
Print Mode
Select whether to print outside or inside the half folded paper.
Tri Fold
Specify these settings when you want to make trifolded copies.
This menu is displayed only when the trifold function is enabled.
Tri Fold
Allows you to make trifolded copies.
Sheets per Fold
Specify the number of trifolded pages.
Print Mode
Select whether to print outside or inside the trifolded paper.
) of the scanner glass are detected as the scan area, but the margins at the opposite side may be cropped.
