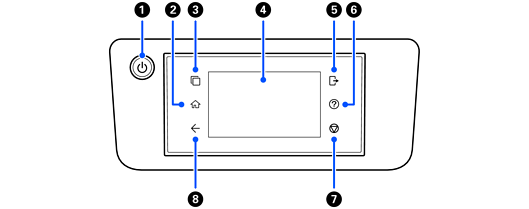

Buttons and Lights

Power button/ light

Press this button to turn the scanner on or off.

Do not turn off the scanner while the light is flashing because the scanner is operating or processing data.

-

-

Home

Press this button to display the home screen.

When a screen other than the home screen is displayed

When the home screen is displayed ( is displayed in the top left corner of the screen instead)

Switch ISV server

Press this button to switch servers when multiple synchronized servers are registered to the scanner.

When multiple synchronized systems are registered to the scanner

• When no synchronized systems are registered to the scanner

• When only one synchronized system is registered to the scanner

LCD screen

Tap the screen to select menus or settings.

-

-

Log out

Press this button to log out.

When Lock Setting, Access Control, or an authentication system is enabled, and you are logged in to the scanner ( is displayed in the top right corner of the screen)

Logging in to the Scanner from the Control Panel

When you are not logged in to the scanner

Help

Press this button to display the help screen.

-

-

Stop

Press this button to stop the current operation.

When performing an operation such as scanning

When not performing an operation

Back

Press this button to return to the previous screen.

When a screen other than the home screen is displayed

When the home screen is displayed ( is displayed in the top left corner of the screen instead)
