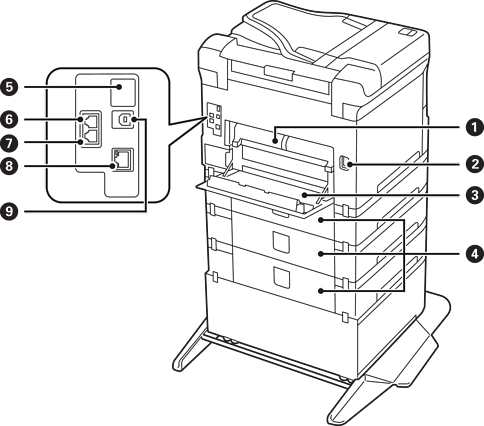

Duplexing unit (D2) |
Remove when removing jammed paper. |
|
|
AC inlet |
Connects the power cord. |
|
|
Rear cover (D1) |
Open when replacing the maintenance box or pickup rollers, or removing jammed paper. |
|
|
Rear cover (E) |
Cover for optional paper cassette units. Open when replacing the pickup rollers or removing jammed paper. |
|
|
Service USB port |
USB port for future use. Do not remove the sticker. |
|
|
LINE port |
Connects a phone line. |
|
|
EXT. port |
Connects external phone devices. |
|
|
LAN port |
Connects a LAN cable. |
|
|
USB port |
Connects a USB cable. |
