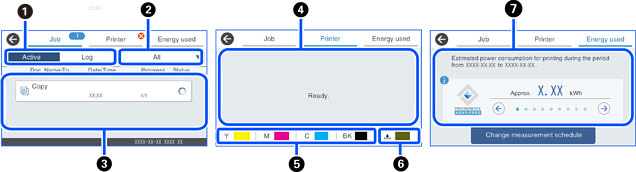

Press the
button to display the Job/Status menu. You can check the status of the printer or the jobs.
|
|
Switches the displayed lists. |
|
|
Filter the jobs by functional. |
|
|
When Active is selected, displays the list of ongoing jobs and jobs waiting to be processed. When Log is selected, displays the job history. You can cancel jobs or check the error code displayed in the history when the job has failed. |
|
|
Displays any errors that have occurred in the printer. Select the error from the list to display the error message. |
|
|
Indicates the approximate ink levels. |
|
|
Indicates the approximate service life of the maintenance box. |
|
|
Displays the estimated power consumption. The displayed power amount is a guideline value for general use and may vary depending on how you use this product. The estimated power consumption is calculated using the following formula based on the printer operating alone (no options installed). Estimated power consumption = A×B + C A: The amount of power required for the print head to move back and forth across the paper width once when printing. B: The number of times the print head has moved back and forth during printing in the past 7 days. C: The amount of power required for feeding paper and so on. Regarding this product's power consumption The TEC value*1 of this product is about 1/3 of the standard value*2 needed to conform to the International Energy Star Program. |
*1 TEC is an abbreviation of Typical Electricity consumption and is the power consumption (kWh) for a standard week (5 days of repeated operation and sleep / off + 2 days of sleep / off). This value is used as a reference value to comply with the "International Energy Star Program".
The TEC value of this product is calculated independently by Epson based on the TEC standard of the International Energy Star Program measurement method. See the Epson website or contact Epson support for the TEC value of this product and its measurement conditions.
*2 The standard values for conforming to the International Energy Star Program are set so that the top 25% of products with excellent energy-saving performance conform to this standard.
