Part Names and Functions

Rear paper feeder

Loads paper.

Paper support

Supports loaded paper.

Feeder guard

Prevents foreign substance from entering the printer.

Usually keep this guard closed.

Edge guide

Feeds the paper straight into the printer. Slide to the edges of the paper.

Output tray

Holds the ejected paper.

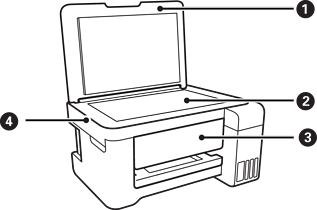

Document cover

Blocks external light while scanning.

Scanner glass

Place the originals.

Control panel

Allows you to make settings and perform operations on the printer.

Scanner unit

Scans placed originals.

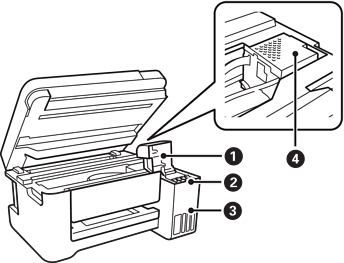

Ink tank cover

Open to refill the ink tank.

Ink reservoir tank (Ink tank)

Supplies ink to the print head.

Ink tank unit

Contains the ink tanks.

Print head

Ink is ejected from the print head nozzles underneath.

Rear cover

Remove when removing jammed paper.

AC inlet

Connects the power cord.

USB port

Connects a USB cable to connect with a computer.
