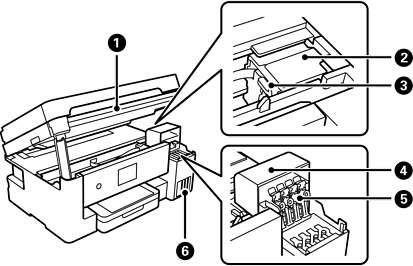

Scanner unit |
Scans placed originals. Open to refill the ink tank or to remove jammed paper. This unit should usually be kept closed. |
|
|
Print head |
Ink is ejected from the print head nozzles underneath. |
|
|
Transportation lock |
Stops ink supply. Set to the locked (Transport) position when transporting the printer. |
|
|
Ink tank cover |
Open to refill the ink tank. |
|
|
Ink tank cap |
Open to refill the ink tank. |
|
|
Ink tank |
Supplies ink to the print head. |
