Never touch the buttons on the control panel while your hand is inside the printer. If the printer starts operating, it could cause an injury. Be careful not to touch the protruding parts, or they could also cause an injury.
Remove the jammed paper.
Raise the control panel.

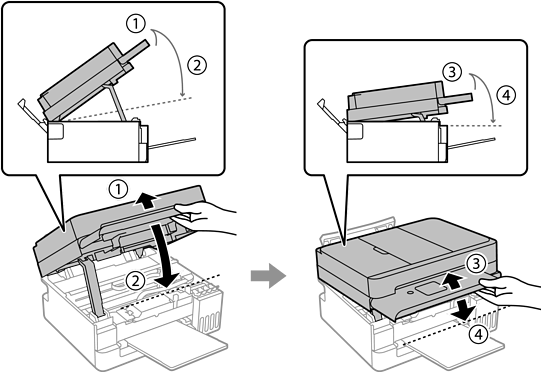

Open the scanner unit until it clicks.
Be careful not to trap your hand or fingers when opening or closing the scanner unit. Otherwise you may be injured.

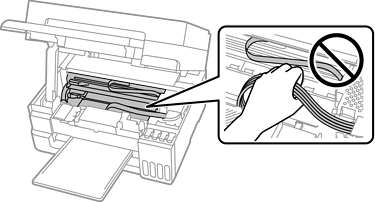

Do not touch the parts shown in the illustration inside the printer. Doing so may cause a malfunction.

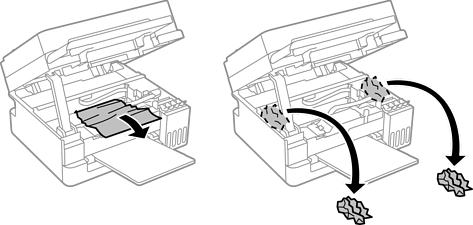

Remove the jammed paper.
Close the scanner unit.
For safety, the scanner unit is closed in two steps.
The scanner unit must be closed completely before it can be opened again.
Do not touch the parts shown in the illustration inside the printer. Doing so may cause a malfunction.
Close the control panel.
