Front

ADF (Automatic Document Feeder) cover

Open when removing jammed originals in the ADF.

ADF edge guide

Feeds originals straight into the printer. Slide to the edge of the originals.

ADF input tray

Feeds originals automatically.

ADF document support

Suppots originals larger than A4-size.

ADF output tray

Holds originals ejected from the ADF.

Paper cassette1

Loads paper.

Paper cassette2

Paper support

Supports loaded paper.

Edge guide

Feeds the paper straight into the printer. Slide to the edges of the paper.

Paper tray

Loads all paper types supported by the printer.

Output tray

Holds the ejected paper. When you start printing, this tray is ejected to fit the paper size automatically. To store the tray, push it manually or select on the control panel.

Edge guide

Feeds the paper straight into the printer. Slide to the edges of the paper.

Paper cassette

Loads paper.

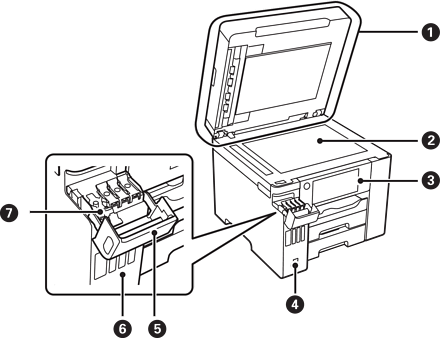

Document cover

Blocks external light while scanning.

Scanner glass

Place the originals. You can place the originals that are not fed from the ADF such as envelopes or thick books.

Control panel

Allows you to make settings and perform operations on the printer. Also displays the printer’s status.

External interface USB port

Connects memory devices.

Ink tank cover

Open to refill the ink tank.

Ink tank

Supplies ink to the print head.

Ink tank cap

Open to refill the ink tank.
