Rear paper feeder |
Loads paper. |
|
|
Paper support |
Supports loaded paper. |
|
|
Feeder guard |
Prevents foreign substances from entering the printer. This cover should usually be closed. |
|
|
Edge guide |
Feeds the paper straight into the printer. Slide to the edges of the paper. |
|
|
CD/DVD tray slot |
Insert the CD/DVD tray with a CD/DVD placed on it for label printing into the top section of the output tray where the light shines. |
|
|
CD/DVD tray |
When printing on a CD/DVD, remove this from the bottom of the printer, place a CD/DVD, and insert it into the CD/DVD tray slot. When not printing on a CD/DVD, store it in the bottom of the printer without placing a CD/DVD. |
|
|

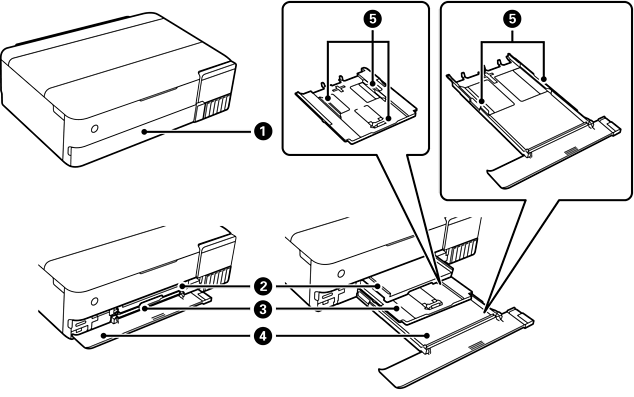

Front cover |
Open to load paper in the paper cassette. |
|
|
Output tray |
Holds the ejected paper. When you start printing, this tray is ejected automatically and the light turns on. If you tap Yes on the screen displayed when the printer is turned off, it is stored automatically. To store the tray manually,tap |
|
|
Paper cassette 1 |
Loads paper. |
|
|
Paper cassette 2 |
|
|
|
Edge guide |
Feeds the paper straight into the printer. Slide to the edges of the paper. |
on the home screen.
