ADF (Automatic Document Feeder) cover |
Open when removing jammed originals in the ADF. |
|
|
ADF input tray |
Feeds originals automatically. |
|
|
ADF edge guide |
Feeds originals straight into the printer. Slide to the edge of the originals. |
|
|
ADF document support |
Supports originals. |
|
|
ADF output tray extension |
Holds legal size originals ejected from the ADF. Make sure you extend this when scanning legal size originals using the ADF. |
|
|
ADF output tray |
Holds originals ejected from the ADF. |
|
|

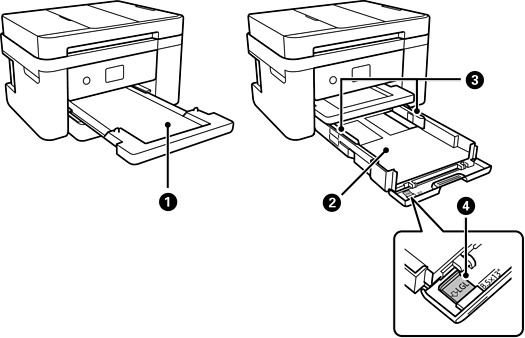

Output tray |
Holds the ejected paper. |
|
|
Paper cassette |
Loads paper. |
|
|
Edge guide |
Feeds the paper straight into the printer. Slide to the edges of the paper. |
|
|
Paper guide extension |
Slide out to load paper larger than A4 size. |
|
|
Document cover |
Blocks external light while scanning. |
|
|
Scanner glass |
Place the originals. |
|
|
Control panel |
Indicates the printer's status and allows you to make print settings. |
|
|
Front cover |
Open to load paper in the paper cassette. |
