> Part Names and Functions > Front

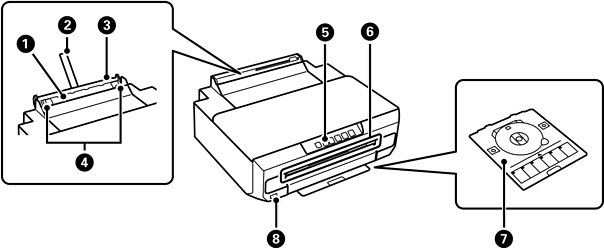

Front

	Rear paper feed slot	Load one sheet of paper at a time by hand.
	Paper support	Supports loaded paper.
	Rear paper feed slot cover	Prevents foreign substances from entering the printer. This cover should usually be closed.
	Edge guide	Feeds the paper straight into the printer. Slide to the edges of the paper.
	Control panel	Operates the printer.
	Disc tray slot	Insert the disc tray with a printable disc placed on it into this slot. The slot is marked with the icon.
	Disc tray	When printing on a disc, remove this from the bottom of the paper cassette 2, place a disc, and insert it into the disc tray slot. When not printing on a disc, store it in the bottom of the paper cassette 2 without placing a disc.
	External interface USB port	Connects a PictBridge capable device.

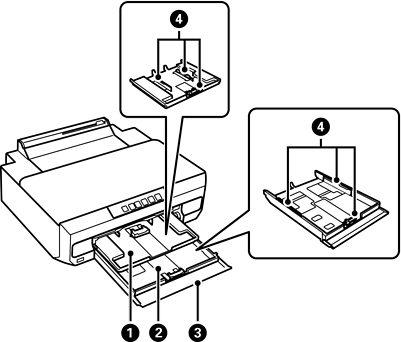

	Paper cassette 1	Loads paper.
	Paper cassette 2	Loads paper.
	Front cover	Open to load paper in the paper cassette.
	Edge guide	Feeds the paper straight into the printer. Slide to the edges of the paper.

XP-65 Series
