Registering Contacts from Web Config When Using IP Fax

When registering a recipient to the contacts list, you can select IP-FAX(IP-LAN) as the line setting.

On a computer connected to the same network as the printer, open a browser and enter the printer's IP address.

You can check the printer's IP address using the following menu.
- Network connected to the printer's built-in LAN port

  Settings > General Settings > Network Settings ( > Standard) > Network Status > Wired LAN/Wi-Fi Status
- Network connected to the Wireless LAN Interface-P1

  Settings > General Settings > Network Settings >Network Status > Wired LAN/Wi-Fi Status
Enter the administrator password to log in as an administrator.
Select the following menu.

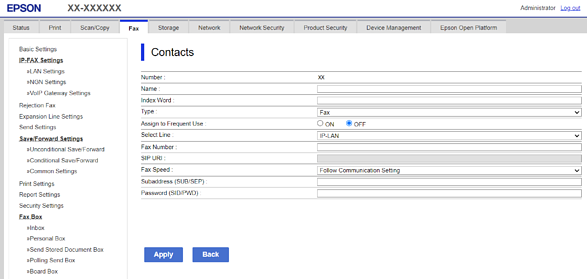

Scan/Copy tab or the Fax tab > Contacts
Select the number that you want to register, and then click Edit.
Enter the Name and Index Word.
Select Type for the Fax.

Note:

You cannot change the Type option after registration is complete. If you want to change the type, delete the destination and then register it.
Select IP-LAN in Select Line.
Enter the destination in SIP URI

IP Fax Destination
Select other settings as necessary, and then click Apply.
