Top > Part Names > Connectors
Connectors

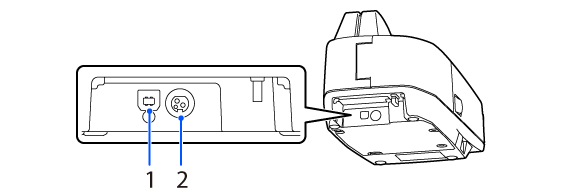

The connectors are located on the back side of the scanner.
|
1 |
|
USB connector (Type B) |
Connect a USB cable (Type B). |
|
2 |
|
Power supply connector |
Connect a DC cable for the AC adapter. |
