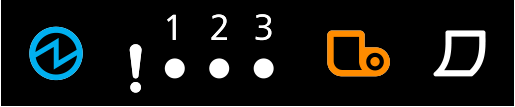

Roll paper near end

The roll paper will run out soon. Prepare a new roll paper.

• Continued self-test standby

• Macro execution standby

• Standby for closing roll paper cover when printing status sheet

The printer is waiting for user operation. Press the Feed button or close the roll paper cover to continue the process.

Check insertion standby (Only MICR model)

Insert the check paper.

TM-Intelligent function warning

A connection cannot be established with the server. Check the network-related issues such as cable connections or server operation status.

Powering off

The printer is shutting down. Wait until the Power LED turns off.

Power OFF standby

The printer is ready for the power to be turned off with your system. Use the power switch to turn off the power.

Overwriting firmware

The printer firmware overwrite process is in progress. Wait until the printer restarts.

CAUTION:

Do not turn off the power while the firmware overwrite process is in progress.

This occurs when printing on the roll paper

• Head temperature error

• Motor driver IC temperature error

• Paper feed motor error

The printer temporarily stops operating because the print head, roll paper feed motor, or driver IC has overheated. Wait until the printer resumes operation.

• Autocutter error

• Paper jam at the paper feed motor (roll paper)

Open the roll paper cover and check for any foreign objects. Then clear the error from your system.

Auto cutter error

Roll paper cover open error (during printing)

Properly set the roll paper and then close the roll paper cover. Then clear the error from your system.

Printing stop by cover open

Paper jam (Slip/Endorsement/MICR/Validation)

Open the front cover and front carriage unit and then check for paper and any foreign objects.

Paper jam

The RTC (Real Time Clock) battery has run out.

Use a USB cable to connect the printer to the computer and then use the TM-H6000VI Utility to set the time. For more information about the TM-H6000VI Utility, see the TM-H6000VI Utility User's Manual.

R/W error in memory

Detected an error during memory R/W.

High voltage error

Detected abnormal voltage (high) in the power source.

Low voltage error

Detected abnormal voltage (low) in the power source.

CPU execution error

The CPU executes an incorrect address.

Internal circuit connection error

Detected an error in the internal circuit connection.

Communication unit error

Detected an error in wireless communication or the wireless unit, or detected that a non-specified device was connected to the USB Type-A connector when the power was turned on.

Paper feed motor error (roll paper)

Detected an error in the roll paper feed motor.

Mechanical operation error

Could not detect the position of the platen roller opening/closing mechanism.
