Top > Appendix > Specifications

Specifications

Compatible Tablet size and weight

Compatible tablet size

Height

134.7 to 220.6 mm (5.3" to 8.69")

Width

200.0 to 305.7 mm (7.87" to 12")

Thickness

Up to 11.0 mm (0.43")

Note:

Use Bottom cover B for tablets with a height of 192 mm (7.56") or more.

Compatible tablet weight

Up to 723 g (1.59 lb)

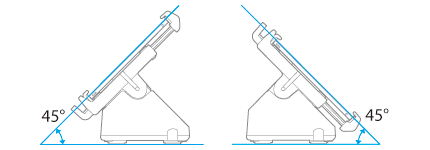

Tablet Rotating Function

Screen retention angle

Angle toward the operator

45˚

Angle toward the customer

45˚

Note:

When you rotate the tablet, make sure you use apps that also rotate with the screen.

Tablet Charging Function

Number of charging ports

USB Type-A 2 ports

Charging capability

5.2 V Total 2.6 A (2.1 A individual)

Power supply

PS-180

Current consumption (at 24V)

2.1 A

External Dimensions and Weight

When Bottom cover A is attached

Width

194 mm (7.64")

Height

178 mm (7.01")

Depth

193 mm (7.60")

When the slider is retracted.

When Bottom cover B is attached

Width

194 mm (7.64")

Height

201 mm (7.91")

Depth

193 mm (7.60")

When the slider is retracted.

Weight (mass)

When Bottom cover A is attached: Approx. 1.30 kg (2.87 lb)

When Bottom cover B is attached: Approx. 1.35 kg (2.98 lb)
