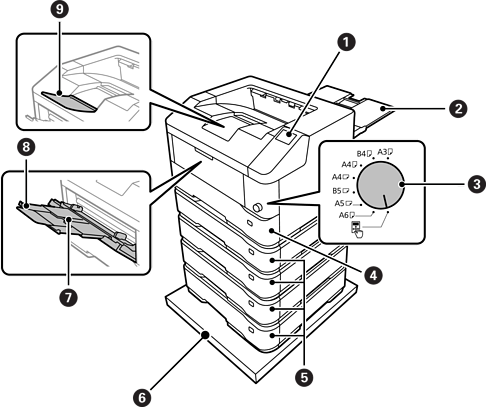

Front

Control panel

Allows you to make settings and perform operations on the printer. Also displays the printer's status.

Face up tray^*

Holds the ejected paper.

Paper size setting dial

Selects the paper size to be loaded in the paper tray.

Paper cassette 1 (C1)

Loads paper.

Paper cassette 2, 3, 4, 5 (C2, C3, C4, C5) ^*

Optional paper cassette units. Loads paper.

Cassette 5 is only available for theAL-M8250DN/AL-M8150DN.

Printer stand^*

Optional printer stand. The stand has casters allowing you to easily move the printer.

Paper tray (MP)

Loads all paper types supported by the printer.

Paper support

Supports loaded paper.

Output tray

Holds the ejected paper.
