Top > Before Using the Product > Checking Items Included with the Customer Display

Checking Items Included with the Customer Display

The following items are included with the product. If any item is damaged or missing, contact qualified service personnel.

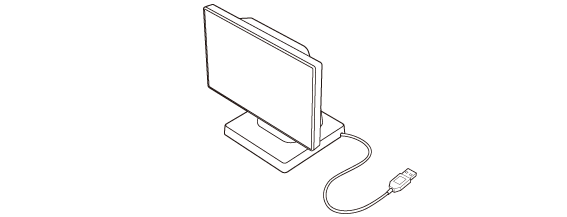

  • Customer display

  • Ferrite core
    Ferrite Core

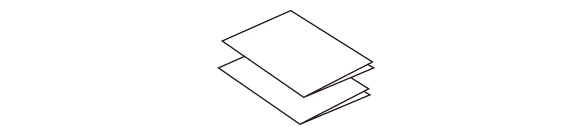

  • Manuals
