Top > Setup > Routing the USB Cable
Routing the USB Cable

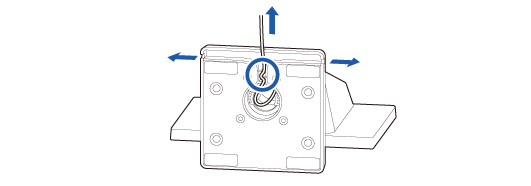

The USB cable can be routed to one of the three directions. Put the USB cable into the notch on the bottom of the stand to secure it.
