Installing Label Editor and Connecting the Printer to Your Windows Computer

Note For instructions on how to turn on Bluetooth® on the computer, consult the documentation for the computer.

1. Double-click the "SetUp.exe" file.

2. When the installation screen appears, click Install application and driver.

3. Follow the on-screen instructions to install Label Editor.

4. When the printer driver installation screen appears, select "LW-C650" and click Next.

Even if your printer is LW-C650PX, select "LW-C650".

Note It may take some time for the screen to be displayed. It may open behind another window. If the screen does not auto start, restart the "SetUp.exe" file. Select Modify then Install driver only.

5. Select the method for connecting the printer and computer together.

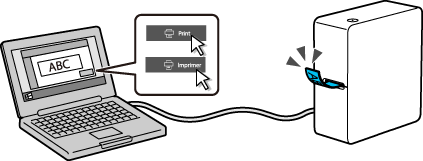

6. Connect the USB cable to the printer and your computer.



7. Turn on the printer. Make sure that the lamp is fading in and out.



8. When the completion message appears, click Finish.

The setup procedure is now completed.

Note The screens of the Label Editor installer may differ depending on the version.

Creating and Printing a Label

Note For how to use the software, please check the "Online Manual" displayed by clicking the [Help] of the software.

1. Start the software and then select "LW-C650".

Even if your printer is LW-C650PX, select "LW-C650".



2. Perform the tape feed operation from the software.

Note Always perform the tape feed operation after inserting a tape cartridge. Check the tape width setting in the software after inserting a tape cartridge. By clicking , the tape width of the currently installed tape can be obtained.

3. Create labels with the software and print.
