Top > Setup of the Printer > Placing the Printer

Placing the Printer

Install the printer on a level and flat surface.

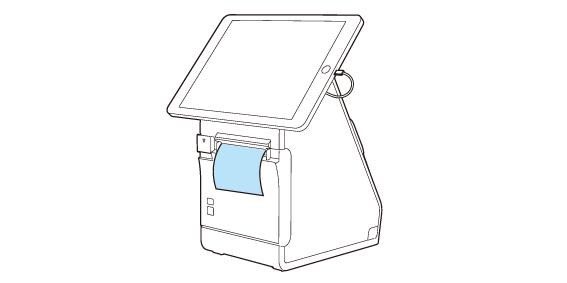

The roll paper is ejected from the front side, and the roll paper cover opens frontward.

CAUTION:
  • The printer can tip over if it or the mounted tablet is pushed hard. Avoid applying excessive force to them.

  • Take measures to prevent the printer from moving due to vibrations when using the cash drawer.

    How to Secure the Printer

  • Do not place the printer in locations subject to high dust levels.

  • Do not give a high impact on the printer during operation. Doing so may cause the print failure.

  • Be careful not to place cords or foreign substances under the printer.
