How to Attach the AC Adapter

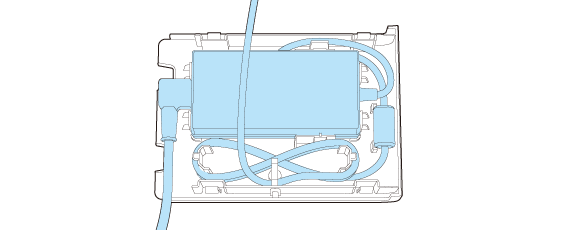

If the AC adapter has come off the bottom cover, attach it to the cover as shown below.
